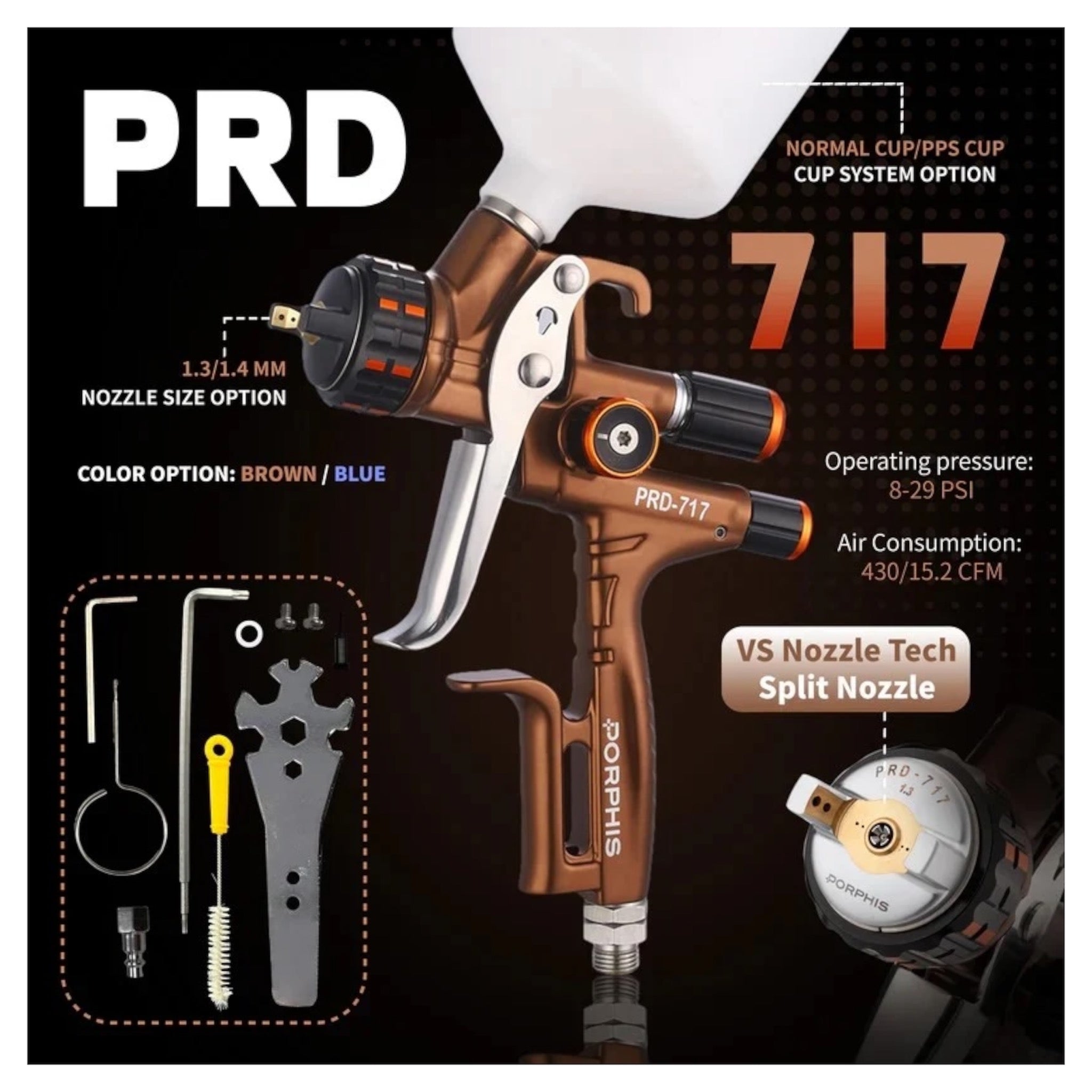

PORPHIS PRD-717 SPRAY GUN 1.3MM VS SPLIT NOZZLE - BROWN

PORPHIS PRD-717 Professional Automotive Spray Gun

The PORPHIS PRD-717 is a professional automotive refinishing spray gun designed to deliver fine atomisation, excellent control and outstanding finish quality across both basecoat and clearcoat applications.

Featuring PORPHIS Split Nozzle Technology, the PRD-717 produces a fine, uniform spray pattern designed to lay coatings down smoothly while reducing overspray and material rebound.

With its combination of a wide 260–350mm spray pattern, low operating pressure and precise fluid control, the PRD-717 is an excellent all-round spray gun for professional automotive painters.

One Gun for Basecoat & Clearcoat

The PRD-717 is suitable for:

• Clearcoat
• Solvent basecoat
• Waterborne basecoat
• Metallic colours
• Pearl colours
• Solid colours
• Automotive topcoats
• Panel repairs
• Full vehicle refinishing
• Blending and repair work

Its fine atomisation provides excellent control when applying metallic and pearl basecoats while also delivering the material distribution required for smooth, high-gloss clearcoat finishes.

Key Features

• Split Nozzle Technology
• Fine and consistent atomisation
• Excellent performance with basecoat and clearcoat
• Large 260–350mm spray pattern
• Low 1.3–1.8 bar operating pressure
• Precision fluid adjustment system
• Haptic click-adjustment fan control
• Smooth linear trigger response
• Reduced overspray and material rebound
• O-ring-free fluid section
• All-metal sealing architecture
• Modular tool-free disassembly
• Forged aluminium gun body
• Stainless steel fluid passages
• Stainless steel needle and nozzle
• Metal air distribution ring
• Lightweight approximately 460g gun body
• Suitable for solvent and waterborne coatings

Technical Specifications

Nozzle Sizes: 1.3mm / 1.4mm
Operating Pressure: 1.3–1.8 bar
Air Consumption: 430 L/min / 15.2 CFM
Fluid Delivery: 175 ml/min
Recommended Spray Distance: 150mm
Spray Pattern: 260–350mm
Fluid Connection: M16 × 1.5
Air Inlet: G 1/4
Gun Body: Forged aluminium
Surface Finish: Anodised
Fluid Passage: Stainless steel
Needle & Nozzle: Stainless steel
Air Cap: Brass
Air Distribution Ring: Metal

1.3mm or 1.4mm?

1.3mm – The ideal all-round setup for automotive refinishing, providing an excellent balance between fine atomisation, material delivery and control. Well suited to both basecoat and clearcoat.

1.4mm – Provides increased material delivery and is ideal for painters who prefer a wetter application, particularly when applying clearcoat or higher-viscosity coatings.

Designed for Easier Maintenance

The PRD-717 features an O-ring-free fluid section with an all-metal sealing design, helping improve resistance to solvents and reducing reliance on traditional rubber seals.

Its modular tool-free design also allows key components to be removed by hand, making routine cleaning and maintenance quicker and easier in a busy paint shop.

Professional Performance Without Compromise

With its combination of Split Nozzle Technology, fine atomisation, wide spray pattern and precise fluid control, the PORPHIS PRD-717 delivers the versatility required for professional automotive refinishing.

Whether you're laying down metallic basecoat or chasing a smooth, high-gloss clearcoat finish, the PRD-717 is a serious all-round spray gun built for everyday professional use.

Basecoat. Clearcoat. One Gun.

The PORPHIS PRD-717 gives professional painters the flexibility to tackle multiple stages of the refinishing process with one high-performance spray gun.
